Water Quality Tester

Solids in Water Determination according to NACE TM-01-73 and API PR 45

Corrosion engineers in the oil and gas producing industry are often charged with the responsibility of evaluating and controlling the quality of injection waters. Furthermore, production engineers are confronted with formation clogging by solids in produced water.

Water Quality Tester: Complete System

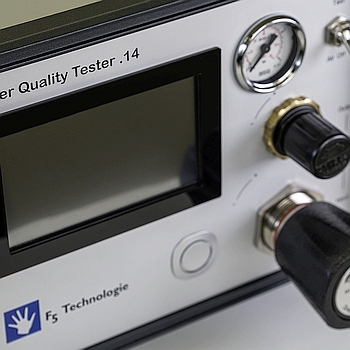

Water Quality Tester: Main Unit

Filter Cartridge: Wide active Area

User Interface

This instrument is suitable to determine the water quality of produced and subsurface injection water by use of membrane filters according to NACE TM-01-73 and API PR 45. According to this method, the sample is pressed through the filter at constant pressure until a certain volume has passed the filter (procedure A) or for a set time (procedure B).

Description

The apparatus consists of a sample reservoir (10 ltrs max) with two connectors: the pressurized gas inlet and the sample outlet. The sample outlet is connected to the filter holder, which is installed above a container on a digital balance.

After adjusting the test pressure, the automated test is started by clicking START on the PC screen. The valve opens and the gas flows into the sample vessel at controlled pressure. The sample is pressed through the filter and into the second container on the balance. The accumulated weight is read out continuously. When measuring according to procedure A, the valve closes automatically when the set weight is reached.

The instrument is available as stand-alone version or to be connected to a PC/laptop (just one USB port required).

Rate vs. cumulative volume test (procedure A)
Suspended solids test (procedurce B)
Pressure adjustable with regulator
Automated testing
PC interface and/or stand-alone operation
Easy to handle and to clean
Gas inlet pressure up to 200 bar

Applications

Solids in Water Determination

Standards:

NACE TM-01-73
API PR 45 (procedures A and B)

Technical Data

Measured data: Sample pressure and weight of filtered sample over time (mass flow)
Pressurized gas supply: oil free pressurized air or nitrogen
Input pressure: 5 to 200 bar (HP inlet for gas bottle / field application)
Output pressure: 10 to 50 psi, adjustable, controlled
Required PC: Standard PC with Windows 7/8/10/11, no proprietary hardware in the PC
Just one USB port required
Power supply: 240 VAC / 50/60 Hz, 120 VAC / 60 Hz, 24 VDC, alternatives available
Power consumption: 40 W or 150 W (stand-alone version)
