Wax Flow Loop

To prevent deposition of complex and heavy organic compounds in reservoirs, well heads and pipelines, it is necessary to be able to predict the onset and amount of deposition due to various factors, e.g. flow (shear) rate, temperature and pressure.

Wax Flow Loop model .13

Wax Flow Loop: System Pressure 200 bar (2900 psi)

Wax Flow Loop with Heating Oven

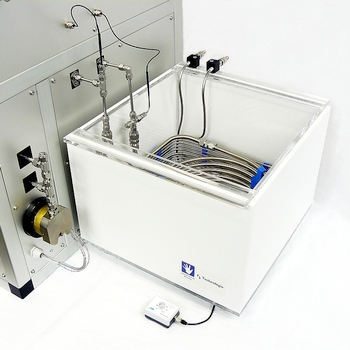

Bath with external Cooling for big Coils (e.g. 20m x 1/2")

Sample Containers for the HP Wax Flow Loop

Wax Deposition Tests with Low Wax Content

Our Wax Flow Loops are designed to simulate these effects in your lab with field parameters under well-controlled conditions.

Description

This instrument offers a variety of test routines dealing with paraffin deposition and flow assurance:

Wax deposition and inhibitor testing
Pipeline restart and yield strength tests
Wax appearance temperature (WAT) determination
Rheology tests
Asphaltene precipitation tests
High pressure capability with live crude oil injection
Pressurization with synthetic natural gas (SNG)

The test pipelines are exchangeable for highest flexibility in simulating field pipelines regarding temperature profile, pressure and shear rate. They have a defined inner roughness, which is highly important to assure reproducible test results.

Applications

Pipeline simulation and paraffin deposition tests
Wax inhibitor developing and testing
Wax appearance temperature (WAT) determination: By temperature drop measurement or with our Flocculation Tester with in-line flow cell
Viscosity measurements: By flow resistance or with an in-line viscometer
Pipeline Restart tests, now also with low viscous oils (1 mPas, API > 20)
Yield Strength tests
Flow behaviour at varying pressure, temperature, shear rate, flow rate (Reynolds number), length and diameter

Technical Data

Differential pressure: 5, 10 or 20 bar (72, 145 or 290 psi)
Resolution: 0.5, 1 or 2 mbar (0.007, 0.015 or 0.029 psi)
Absolute pressure: 60 bar (870 psi) as standard, higher pressure possible
Live crude oil injection mode at 200 bar (3000 psi) system pressure
Pre-heating temperature: 80 °C max
Pipeline temperature: -30 °C to 80 °C standard, alternatives available
Flow rate: 0.005 to 100 cc/min depending on pump layout, alternatives available, pulsation-free, no pump slip
Touch-screen color display
PC with software for data visualisation and storage (Windows 7/8/10/11)
weight: approx. 60 to 140 kg (depending on model)
dimension (BxHxT): approx. 120 x 65 x 60 cm (depending on model)
mains power: 240 VAC @ 50/60 Hz or 120 VAC @ 60 Hz or 208 VAC @ 60 Hz
power consumption: 3500 Watt max
